167 × 87 × 120 cm Custom 304 Stainless Steel Aviary

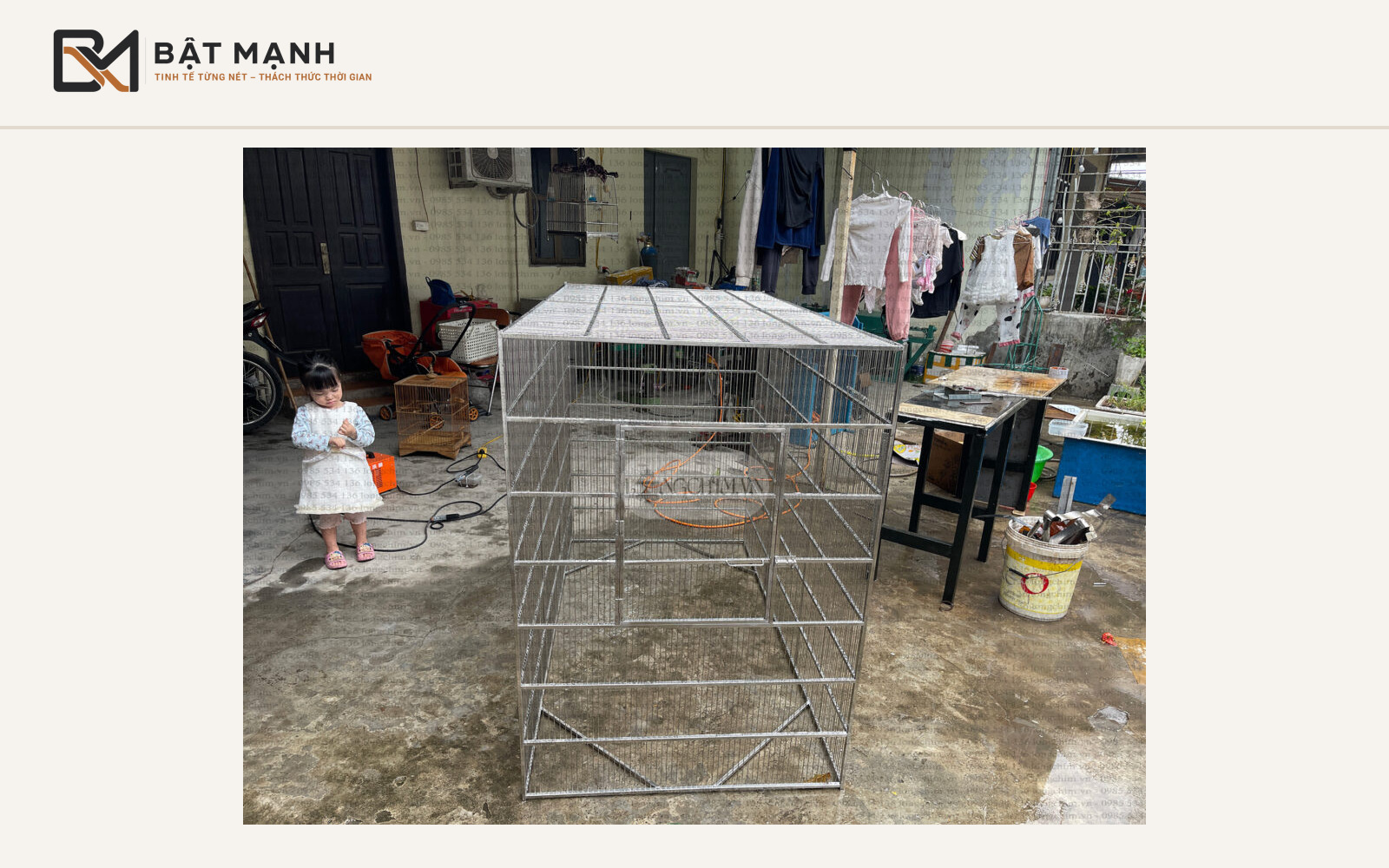

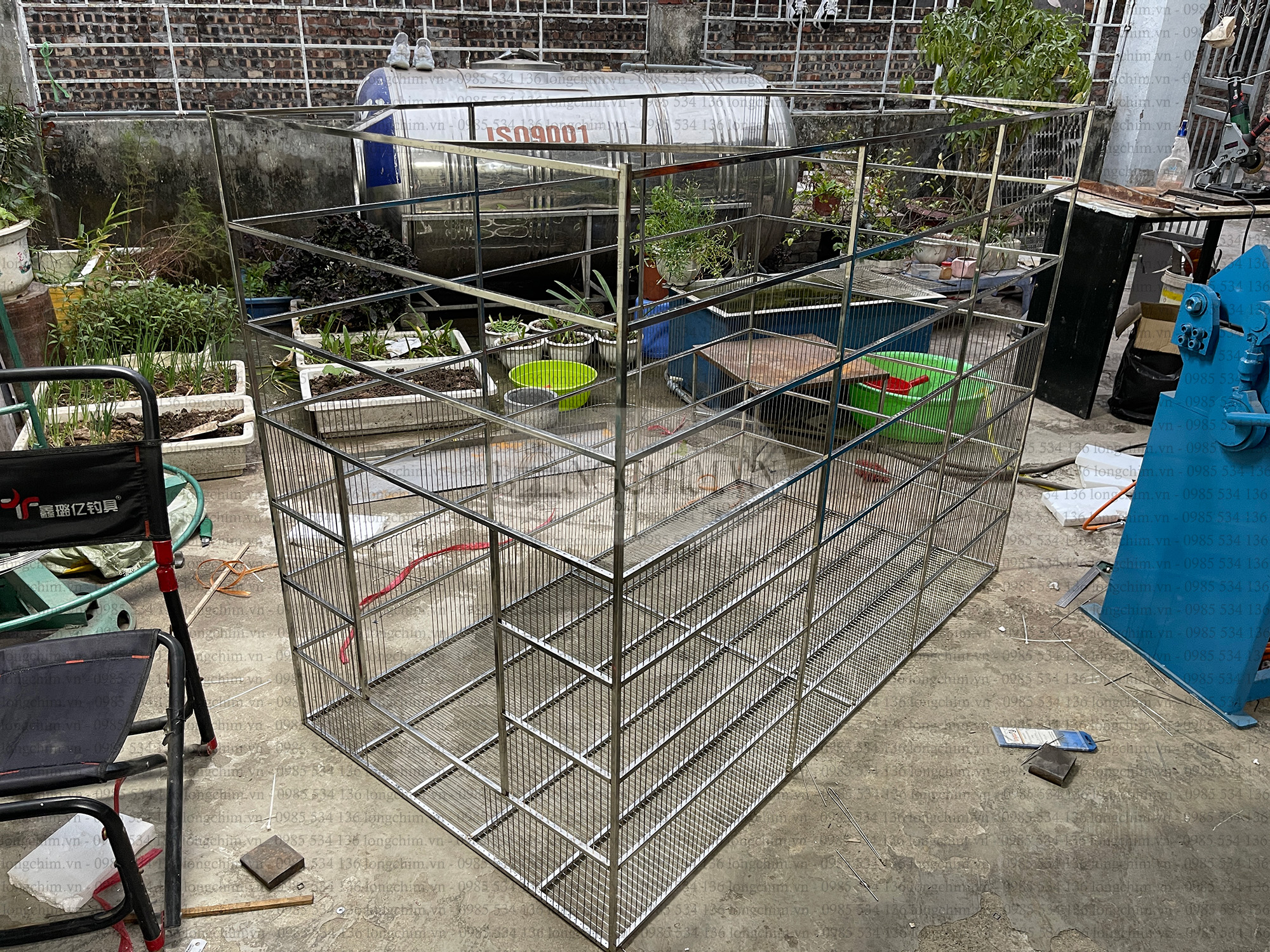

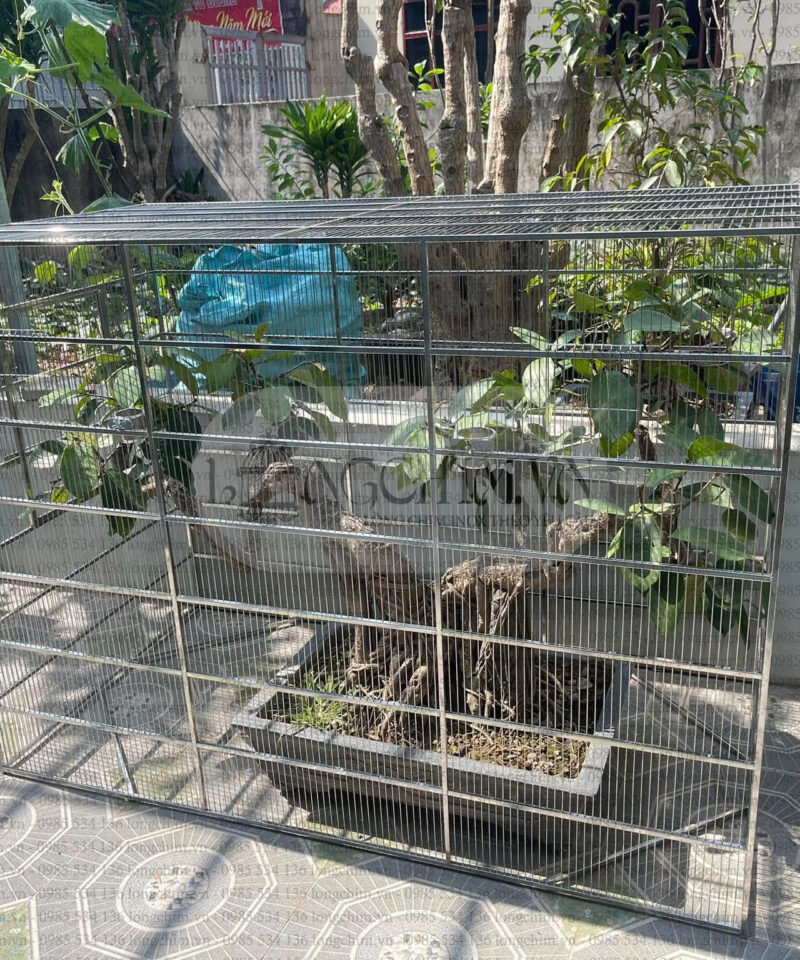

167 × 87 × 120 cm completed stainless steel aviary

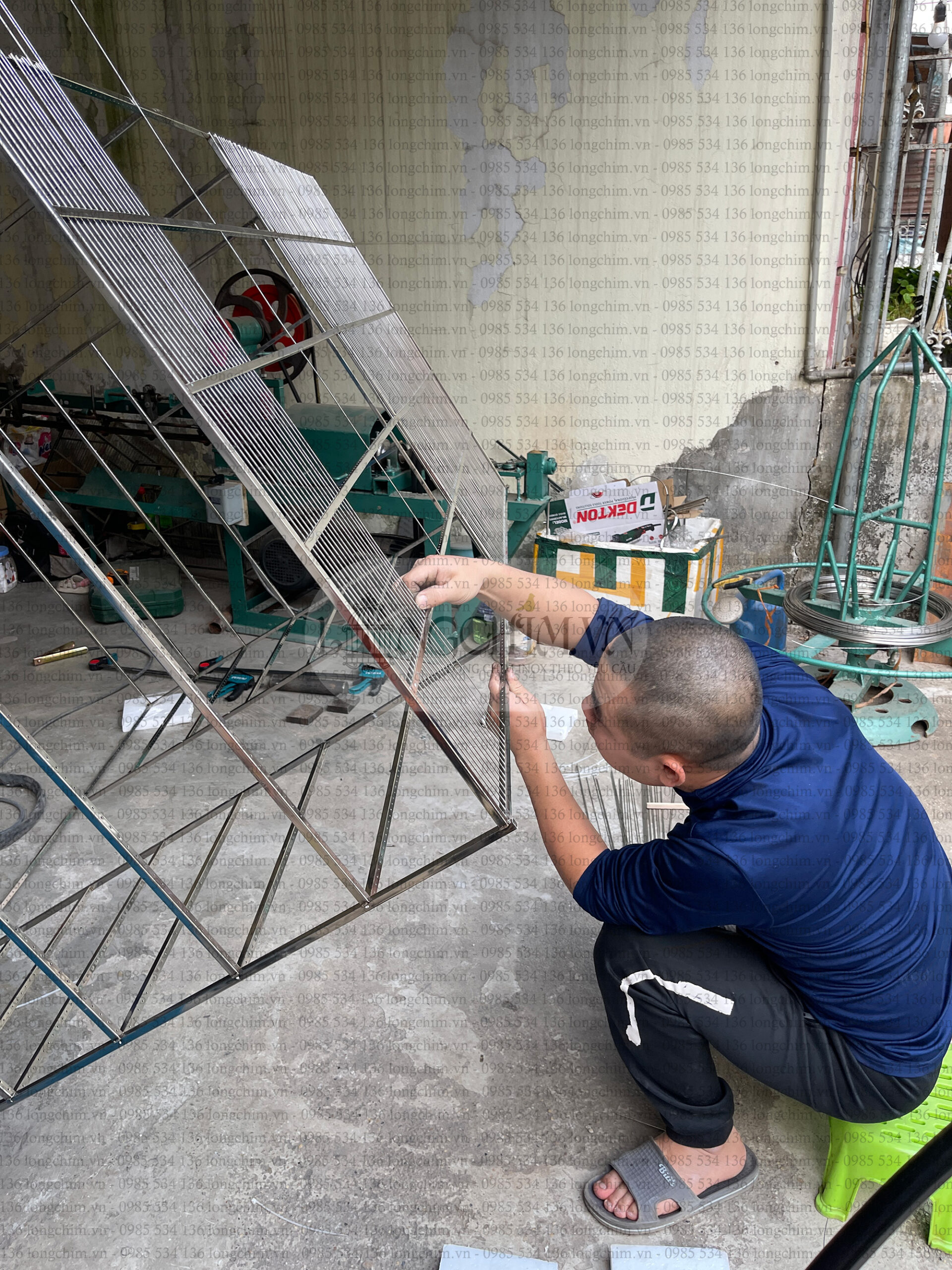

This product records an aviary fabricated at the Bật Mạnh workshop. Its published external dimensions are 167 cm long × 87 cm deep × 120 cm high. The completed reference has one large access door, two smaller service doors and approximately 12 mm clear spacing. It was made without legs and without a waste or soil tray.

Confirmed workshop specifications

The source page does not publish bar diameter, clear internal dimensions, exact door openings, weight, floor construction or included perches and feeders. Those details must be measured or specified for a new order.

Long horizontal room with defined service access

The 167 cm length provides a wider layout direction than the compact vertical aviaries in the current range. Principal perches, bowls and accessories should be positioned without blocking the clearest movement path. The 120 cm external height does not automatically describe internal flying height; frame members, floor and roof details must be deducted from the usable space.

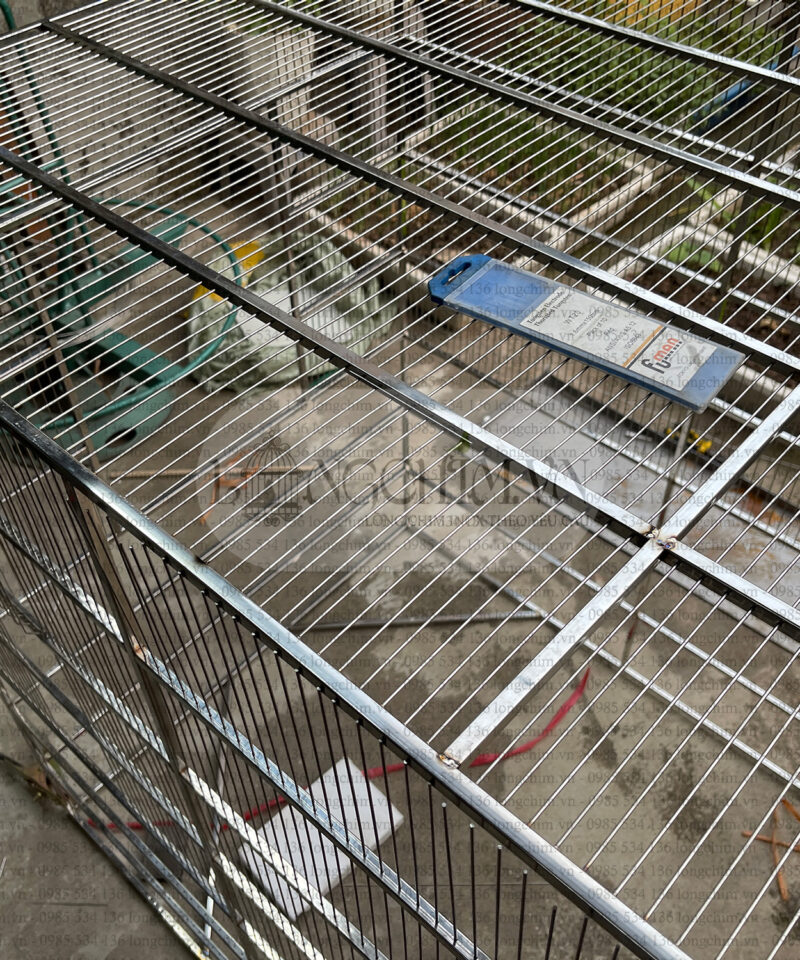

The 12 mm spacing is a reference, not a universal fit

Approximately 12 mm describes the clear spacing recorded for this completed order. It must not be copied to another species without checking head and body size, age, mobility and all gaps around the doors, floor and accessories. The bar diameter is not published and should not be estimated from photographs.

One large door and two smaller doors

The large door supports cleaning and moving equipment into the enclosure. The smaller doors can serve feeding, bathing, nest or other agreed functions. For a repeat build, record the clear width and height, swing direction, threshold, latch and surrounding gaps of every opening. A safety porch is not listed on this product and would be a separate custom feature.

No legs and no waste tray on the reference build

This configuration relies on the prepared support or floor at the destination. Confirm how the aviary will sit level, how the lower edge will close safely and how waste and wash water will be removed. Legs, wheels, a sealed base, floor grille, divided trays or drainage would change the external envelope and quotation.

Fixed or modular repeat construction

A 167 × 87 × 120 cm fixed body requires a suitable access route. Measure the smallest gate, doorway, corridor turn, lift and stair landing. If one-piece delivery is impractical, Bật Mạnh can review a modular structure, but module joints, supports, trays and final rigidity must be designed rather than improvised at installation.

Before ordering this reference again

• Identify the bird species and quantity.
• Confirm overall and usable dimensions plus the intended internal layout.
• Measure bar diameter, clear spacing and every secondary gap.
• List doors, locks, floor, legs, wheels, trays, perches, bowls and other included items.
• Provide installation and delivery-route measurements.
