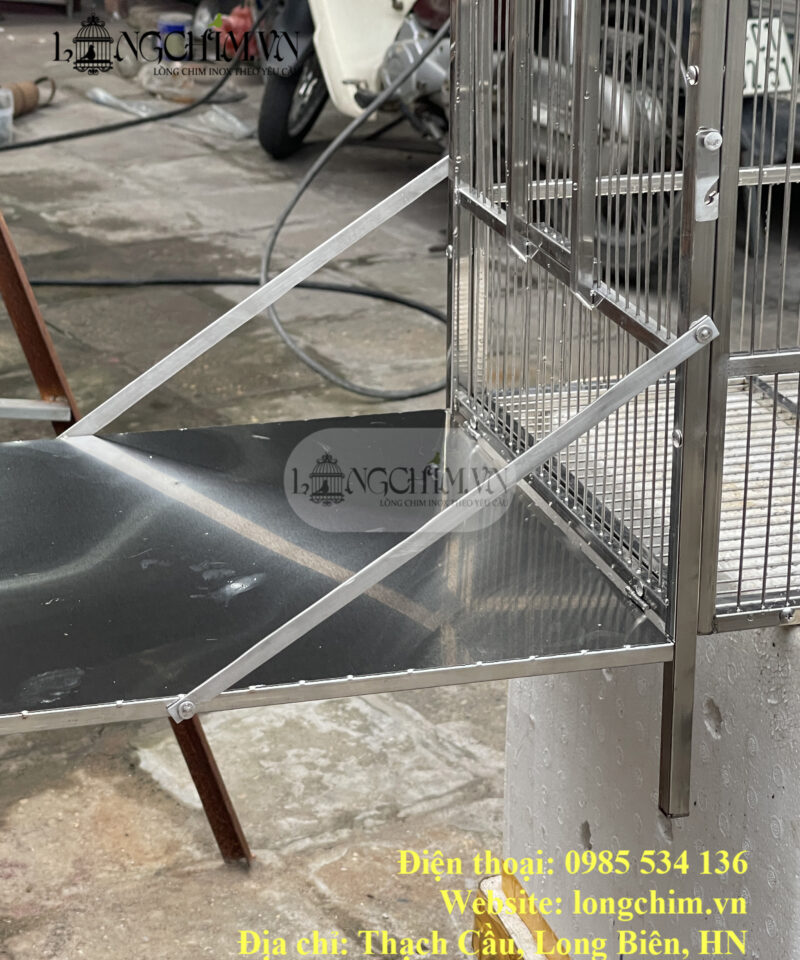

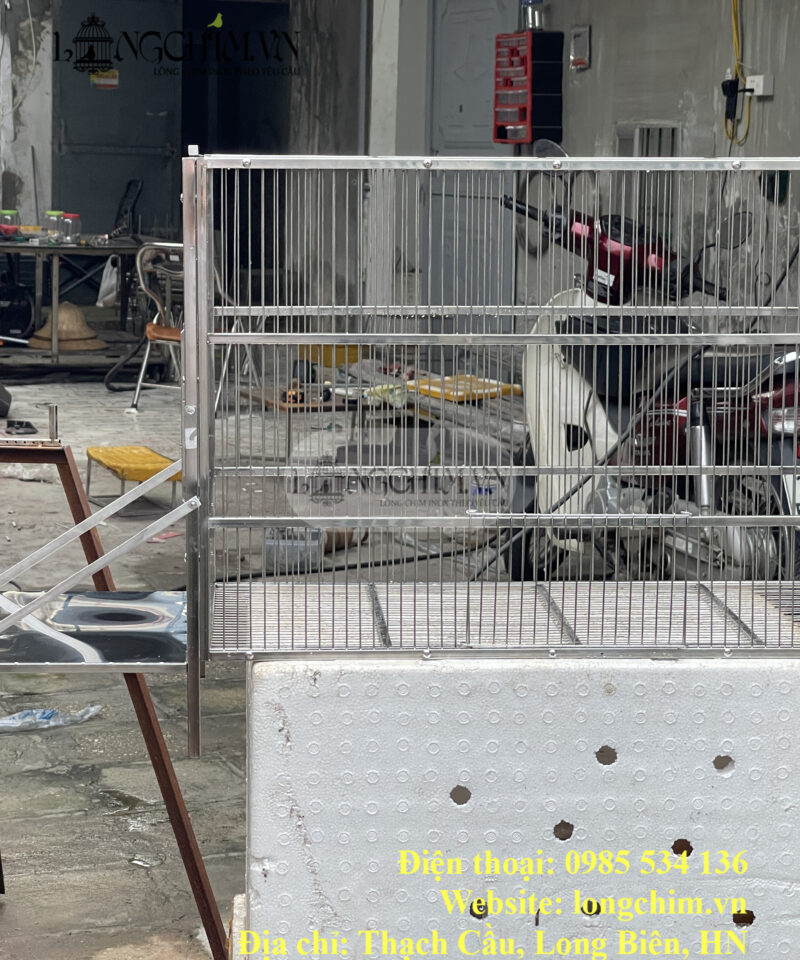

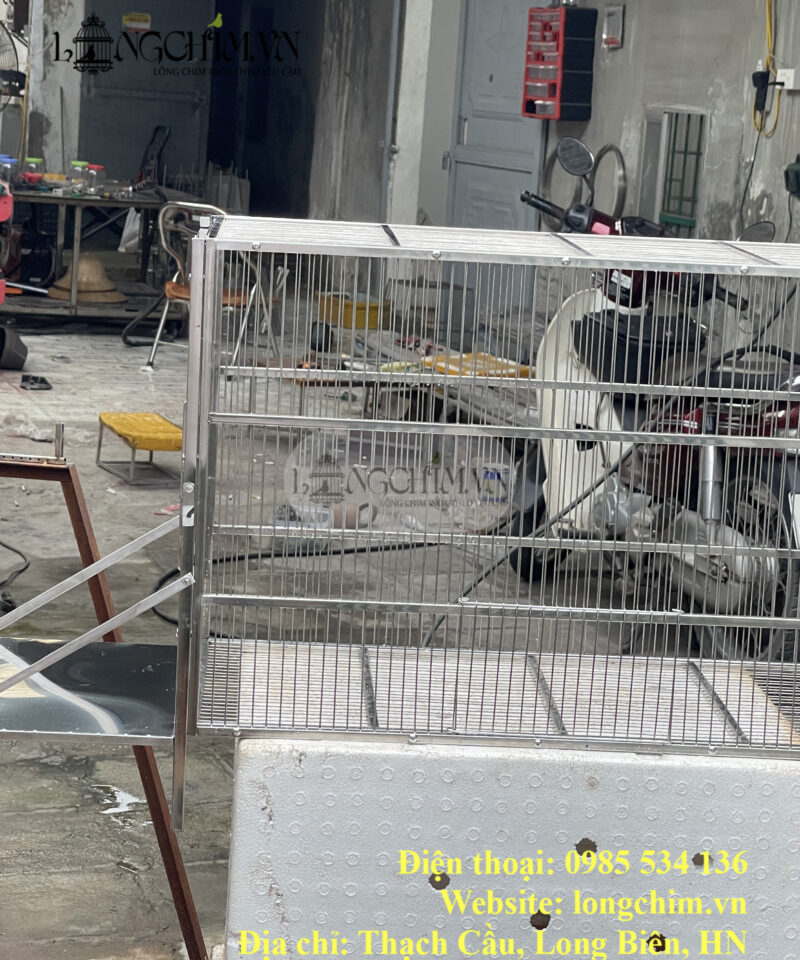

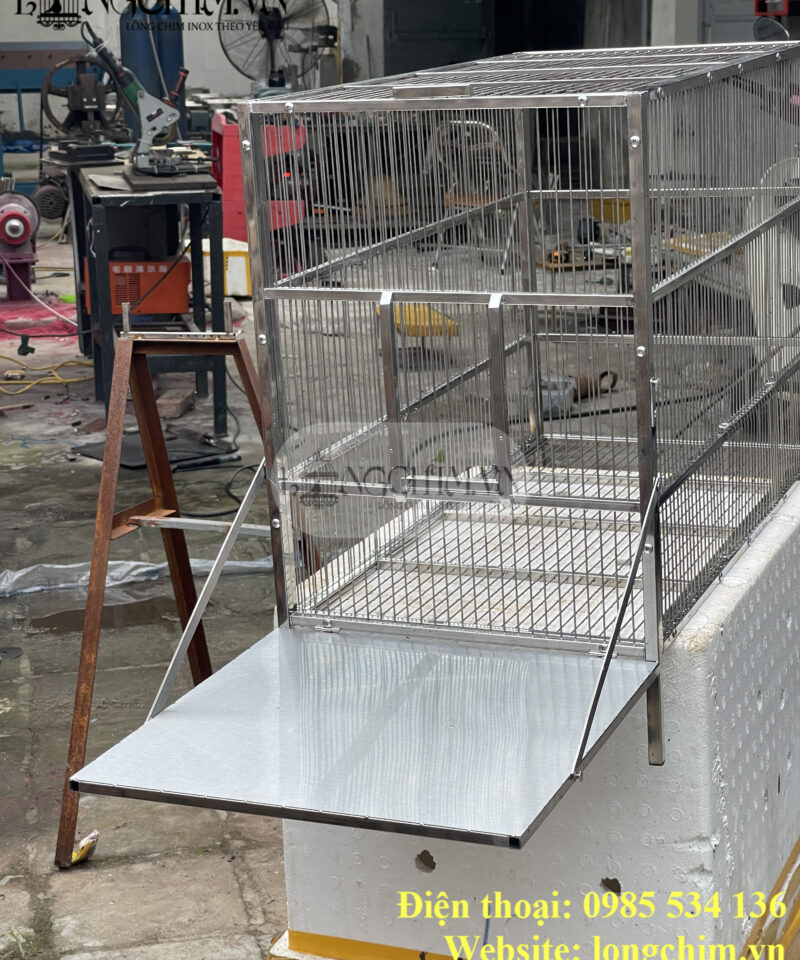

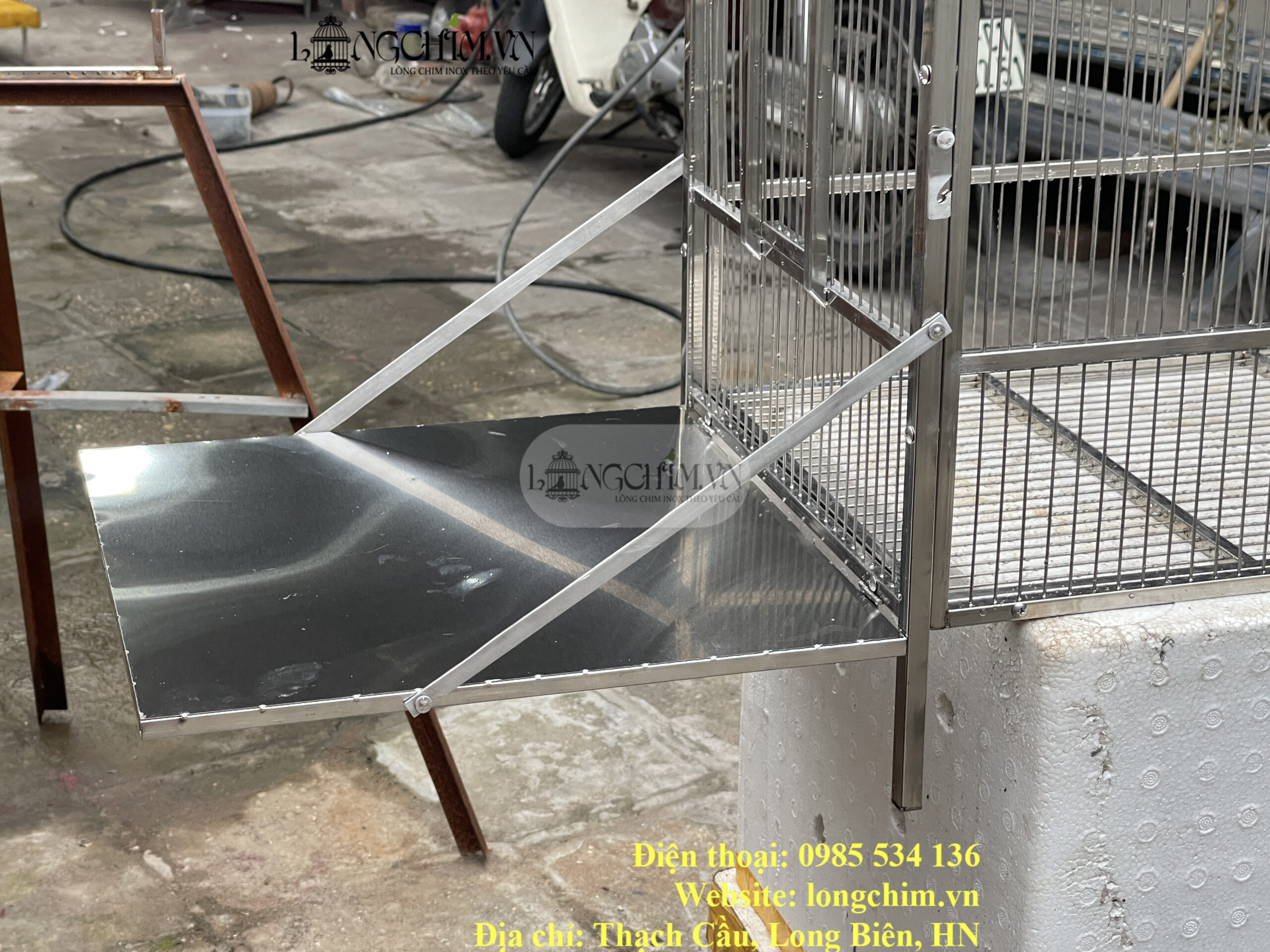

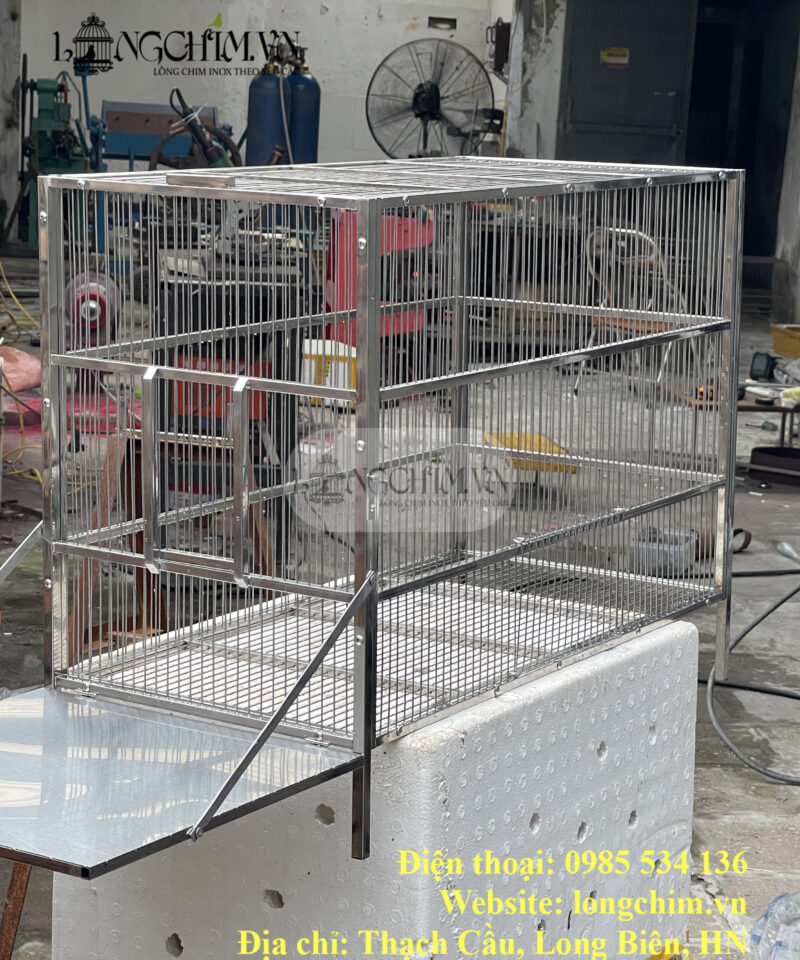

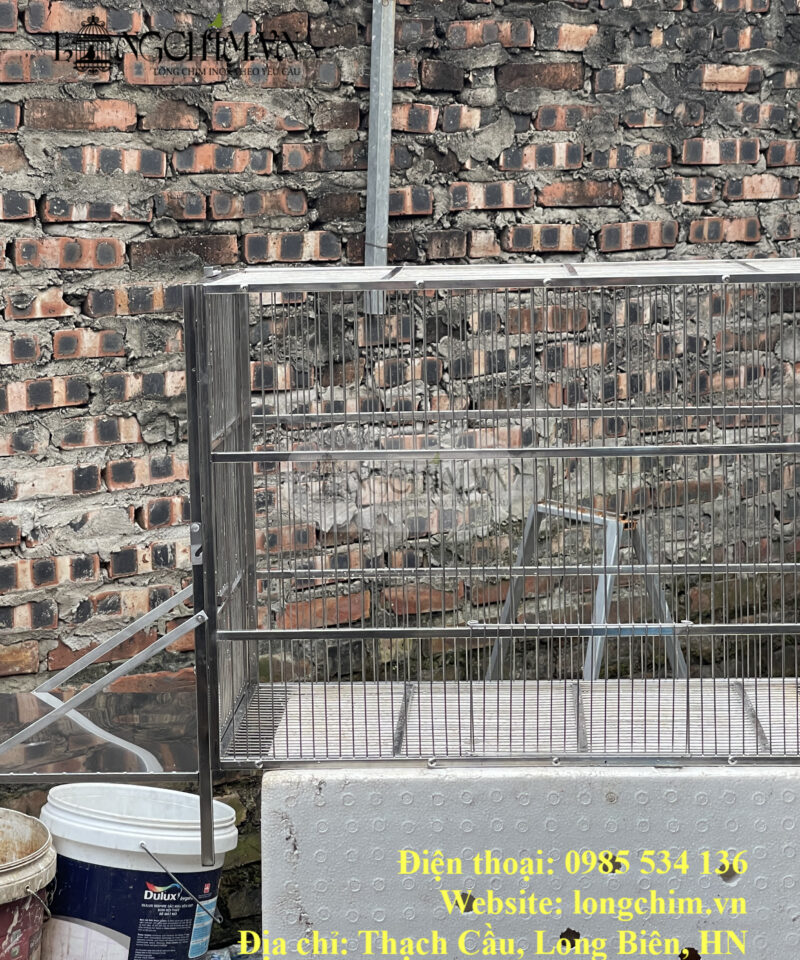

Made-to-measure modular flight cage
This 304 stainless steel flight cage is built in detachable sections so that longer cages can be transported, carried through the access route and assembled at the final location. Bật Mạnh can review compact sizes as well as 120 cm, 150 cm, 180 cm, 2 m, 2.5 m, 3 m and other project-specific lengths.
Reference configurations
| Reference dimensions | Typical direction |
|---|---|
| 60 × 38 × 50 cm | Compact modular format |
| 70 × 38 × 50 cm | Portable cage with more perch separation |
| 80 × 38 × 50 cm | Practical small-to-medium songbird configuration |
| 100 × 40 × 55 cm | Longer horizontal route for a defined home installation |
| 120–200 cm | Multi-section cage with supports and divided cleaning access as required |
| Over 200 cm | 2.5 m, 3 m or another made-to-measure length, normally divided into manageable modules |
These sizes are examples, not universal recommendations. Depth, height, bar spacing and the number of sections are adjusted for the identified bird, intended use and installation area.
Species-specific bar spacing
Current modular projects commonly use approximately 10–14 mm spacing, but the final value must be confirmed for the individual species. White-eyes and sunbirds may need a finer configuration than bulbuls, shamas, thrushes or larger songbirds. Door, feeder and tray gaps are reviewed at the same time.
Options that can be specified
- Overall length, depth and height.
- Number and position of modular sections.

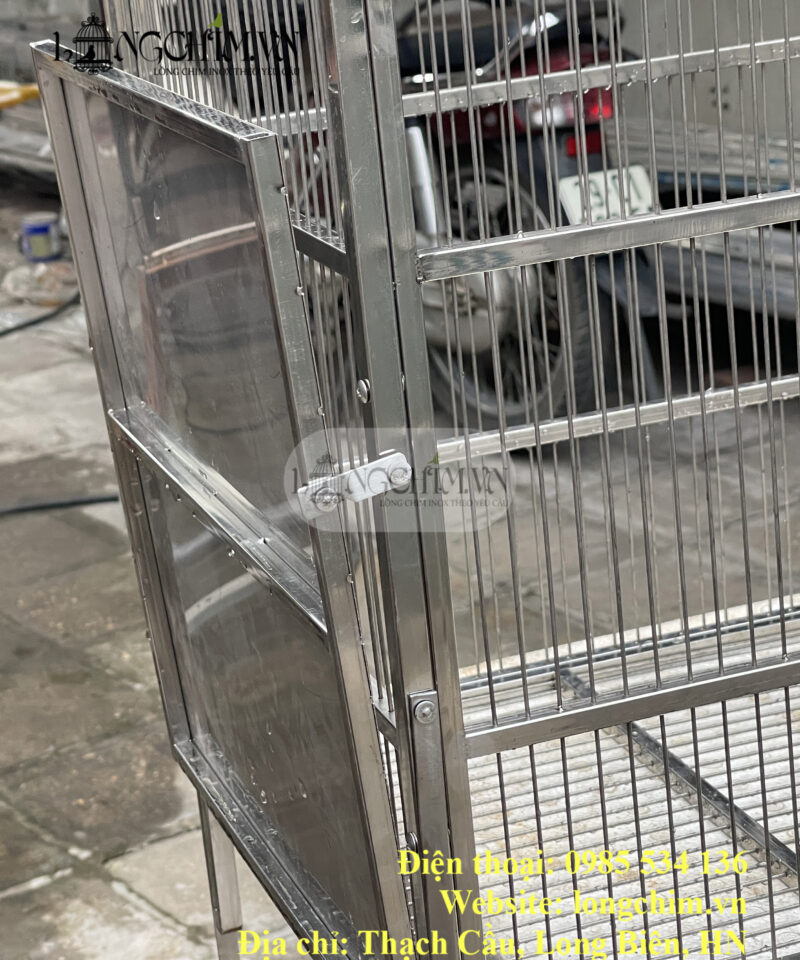

- Main door and smaller service-door locations.
- High or low support legs and the required working height.
- One-piece or divided removable stainless steel waste trays.
- Perch positions, feeder access and bathing-area clearance.
Planning extra-long cages
A cage longer than 2 m is not simply a 120 cm model stretched into one large panel. Frame stiffness, joint locations, support points, floor level, tray weight, door placement, assembly clearances and the route into the installation area must be considered together. The agreed design is divided into sections that can be moved and securely joined without leaving loose bird-accessible fasteners.
Quotation and fabrication
This is a made-to-order product, so the final price depends on dimensions, number of modules, bar specification, doors, trays, supports and delivery requirements. Please send the bird species and quantity, target dimensions, photographs of the installation space and delivery location. Bật Mạnh confirms the specification, quotation and production time before fabrication.
Contact +84 985 534 136, email nguyenbatmanh@gmail.com or message Bật Mạnh on Facebook.
